Description
Here is everything you need to know about these:
Prosport Coilovers: Caddy Mk3 Facelift 2K
Key Features:
Ride height adjustable – see below for details of the lowering amounts.
Zinc-plated coilover struts for a quality finish with enhanced corrosion protection.
Blue Powder-Coat finish on the springs.
Progressively wound front springs.
Engineered to give the best balance between firmly controlled handling and comfort.
Compatibility:
This Prosport Coilover Kit is suitable for these VW Caddy Mk3 Facelift 2K models, made from 2010-2015:
1.2 TSI
1.6 LPG
1.6 TDI
2.0 TDI Manual
Not suitable for 2.0 TDI models with DSG.
Not suitable for 4-Motion models.
Suitable for vehicles fitted with 50mm and 55mm diameter standard front struts.
Lowering Range:
Front: 30-75mm
Rear: 50-85mm
Product Specifications in Detail:
Front Shock Absorber Type: Twin-Tube with pressurised gas.
Rear Shock Absorber Type: Twin-Tube with pressurised gas.
Front Spring Type: Progressively wound.
Rear Spring Type: N/A.
Maximum Front Axle Load: 1105kg
Maximum Rear Axle Load: 1250kg
Zinc plated front Coilover units, silver painted and lacquered rear shock absorbers.
Blue EPS Powder Coating on the springs.
Alloy adjustment and lock rings on the Coilover Units.
Robust steel rear axle bracket kit for strength and security.
TUV Quality Certification: Yes – Find out more about TUV here: https://en.tuv.at/inspection-and-approval/
Good to Know:
Rear lowering is achieved by an ‘axle-flip’ – repositioning of the rear axle to the upper side of the leaf spring, combined with drilled hangers as pictured which allow a range of lowering.
These Prosport Coilovers are designed to fit on to the standard (OEM) top mounts.
No additional parts needed for installation of this Prosport Coilover Kit.
TUV Quality Certification.
1 year warranty.
We recommend having the suspension geometry checked and adjusted after fitting these Coilovers.
To ensure both optimum performance and reliability, always keep within the lowering range shown above.
Vehicles with factory-fitted sport suspension will lower by less than the stated figures.
Why Buy From Prosport?:
Prosport is a UK-based company, run by its owners, who are undeniably car enthusiasts with a long track record in the automotive tuning business.
Every product is manufactured to the same exacting standards, under the stringent requirements of TUV and ISO quality control, with the result that you can be sure your Prosport product is reliable and safe.
We are particularly proud of the reliability rate of Prosport products, which we fully expect to give you great service in the long run.
Equally important is the high praise our Coilovers receive for the ride quality. Our Coilovers have been specifically designed to provide a great balance between ride quality and firmness, so you can fit them on your daily with no regrets!
Finally, you can be sure that should you ever need any replacement parts, we will always try to help.

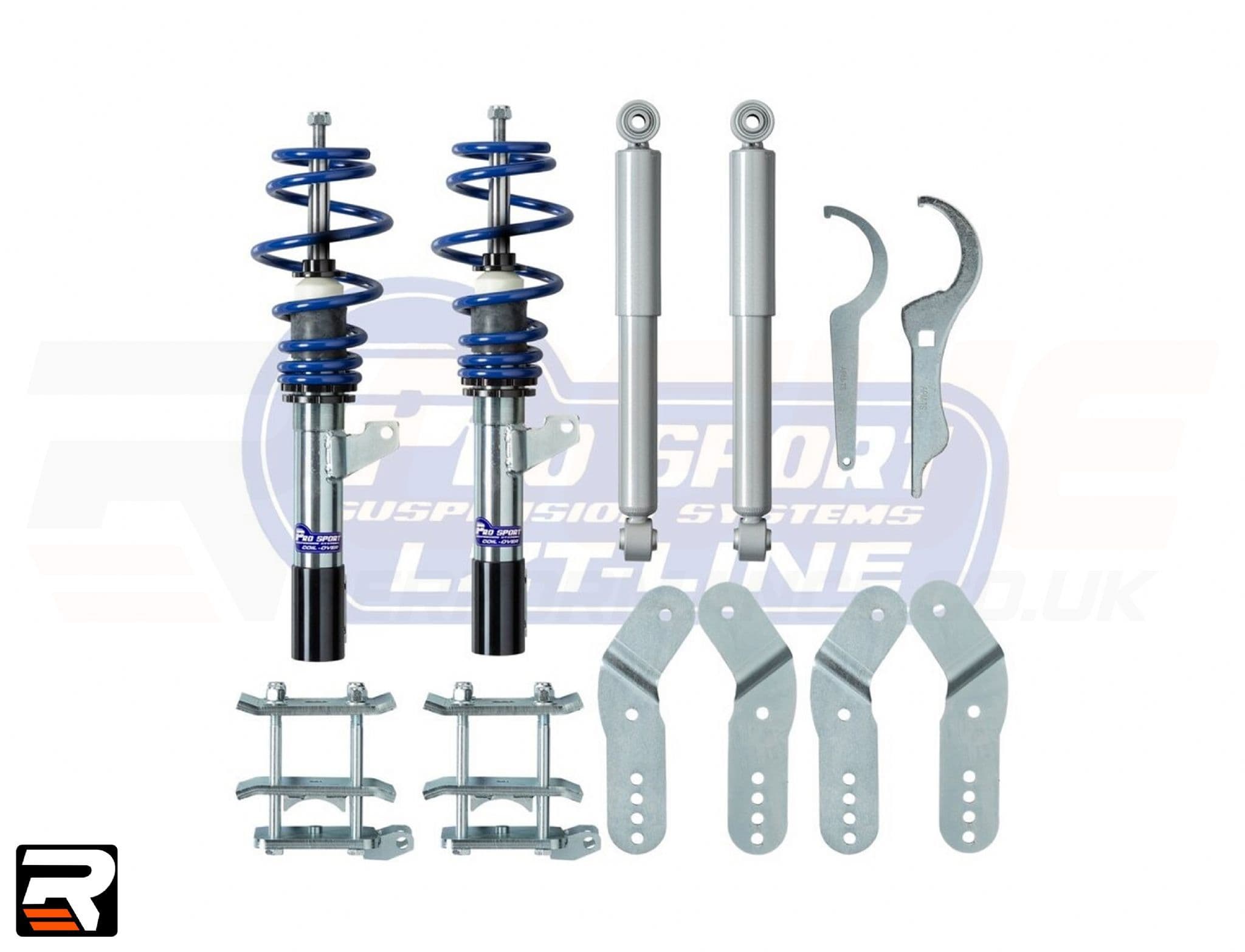

In the box:
Front Coilovers x2.
50-55mm adapter sleeve x2.
Rear Uprated, Shortened Shock Absorbers x2.
Bracket kit to enable repositioning of the rear axle.
Tools for setting ride height.
