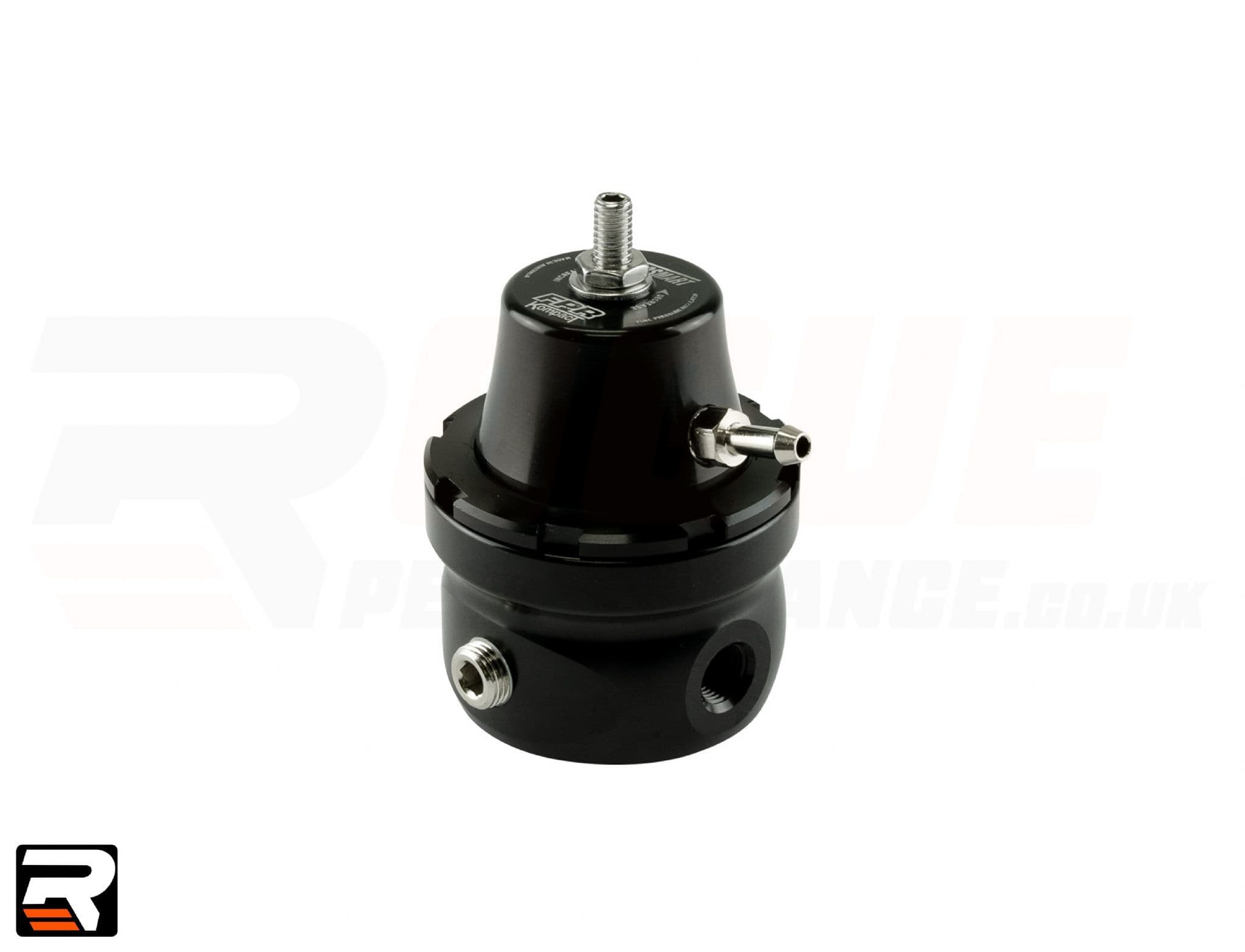

An All-Black Fuel Regulator Upgrade Series for OE and Mild Upgrades to around 800HP. The FPR Kompact Series includes a Universal (1/8NPT) Inlet and Outlet and Bolt-ON direct replacement for Bosch in-rail style regulators as fitted to the VAG (Volkswagen Audi Group) of vehicles and the Ford ‘Barra’ Engine as found in the Australian Delivered Ford XR6 turbo. They are providing class-leading fuel control and response with a small footprint.

Features
Stainless Steel Valve Seat
Suitable for all fuel types
1:1 Class Leading Ratio and Response
Adjustable Pressure
1/8 NPT Gauge / Pressure Sensor Port
Unique Locking Collar Design
Milspec Diaphragm
Detailed Specific Fuel Flow Data and Spec

The Turbosmart FPR Range provides market-leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles fuel systems. Utilising our StainlessSteel Valve Seat & Milspec Diaphragm the FPR Range Series is suitable for all Fuel types including Race Fuel and aggressive leaded fuels. Our FPR Range steps up in 1/8” NPT -6, -8, and -10 inlet and outlet and return fittings and is Available in Standard (35psi to 80psi) as well as LP (3psi to 20psi) for Low Pressure and Carburettor Systems.

• 1/8” NPT gauge fittings

• MILSPEC diaphragm

• Suitable for all fuels

• Non-directional inlet feed logic

• 1:1 true reference pressure ratio

• 35-80psi base pressure adjustable
